Modern businesses are no longer confined to a single office floor. Whether you are managing a headquarters in Chennai and a branch in Coimbatore, or coordinating between a main warehouse and multiple retail outlets, communication is the glue that holds your operations together. But here is the pain point: How do you keep all these sites connected without skyrocketing your monthly telecom bills or dealing with dropped calls?
The answer lies in mastering how to configure VoIP gateways for multi-site connectivity. By bridging your traditional telephony with IP networks, you can create a unified communication web that feels like everyone is sitting in the same room.
In this comprehensive guide, we will break down the technical setup, explore the strategic benefits, and solve the common hurdles of multi-site VoIP integration.

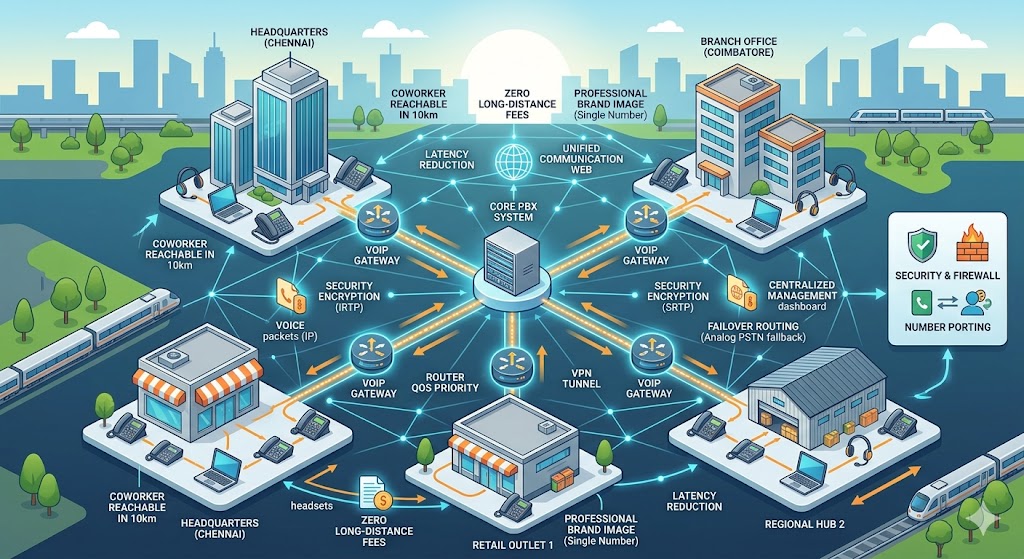

Understanding the Role of VoIP Gateways in Multi-Site Architecture
Before diving into the “how-to,” it is essential to understand what a VoIP gateway actually does. Think of it as a translator. It converts analog or digital voice signals from the Public Switched Telephone Network (PSTN) into IP packets that can travel over the internet.
For a multi-site business, these gateways act as local entry points. Instead of paying for expensive long-distance inter-office calls, your voice data travels over your existing internet connection. This is the foundation of what is an IP EPABX system, providing a modern bridge for legacy hardware.
Step-by-Step: How to Configure VoIP Gateways for Multi-Site Connectivity
Configuring gateways for multiple locations requires precision. You aren’t just setting up one device; you are creating a synchronized network.
Phase 1: Network Preparation and IP Allocation
The most common reason multi-site setups fail is “IP conflict.” Each gateway at each location must have a unique, static IP address.
-
Assign Static IPs: Ensure your ISP provides a static IP for each branch, or use a DDNS service.
-
Subnet Planning: Organize your offices into different subnets (e.g., Office A on 192.168.1.x and Office B on 192.168.2.x).
-
Bandwidth Check: Each concurrent call needs about 100 Kbps. Check your upload speeds at every site to avoid “choppy” audio.
Phase 2: Choosing the Right Gateway Mode
When you log into your gateway’s web interface (usually via a default IP like 192.168.2.240), you will typically see two primary modes:
-
Trunk Mode (SIP Trunking): This is ideal for connecting two PBX systems directly. Both sides “trust” each other’s IP addresses, allowing for seamless data flow.
-
Account Mode: One gateway registers to a central IP PBX as an extension or external line. This is simpler for smaller branch offices.
For a detailed look at hardware options, you might want to explore Dinstar FXO gateway dealers in Chennai and Coimbatore to find the right physical interface for your PSTN lines.
Phase 3: Configuring Dial Planes and Route Patterns
This is the “magic” part where you define how calls move between sites.
-
Unified Extension Dialing: Set up your dial plan so that Office A uses 100-199 and Office B uses 200-299. Now, an employee in Chennai can reach a colleague in Coimbatore by simply dialing “201.”
-
Failover Routing: Configure the gateway so that if the internet goes down, calls are automatically routed through the local analog PSTN line. This ensures 100% uptime.
Phase 4: Security and Firewall Traversal
Opening ports for VoIP (typically Port 5060 for SIP and 10000-20000 for RTP) can expose you to risks.
-
Enable Encryption: Use SRTP (Secure Real-Time Transport Protocol) to prevent eavesdropping.
-
VPN Tunnels: For maximum security, connect your sites via a Site-to-Site VPN. This allows the gateways to talk to each other as if they were on the same local network, bypassing the public internet’s vulnerabilities.
Why Multi-Site Connectivity is a Game Changer for Your Business
Once you have figured out how to configure VoIP gateways for multi-site connectivity, the benefits manifest almost immediately.
Drastic Cost Reduction
Inter-office calls become “internal” calls. Whether your branches are 10km or 1,000km apart, the cost is essentially zero because the data travels over your existing internet. This is a key reason many are looking for a VoIP PBX for small business in competitive markets.
Centralized Management
Gone are the days of having a dedicated “phone guy” at every branch. With a properly configured gateway network, your IT head in Chennai can manage the settings, updates, and troubleshooting for the Coimbatore office from a single dashboard.
Professional Brand Image
A unified system allows for a “Single Number” strategy. A customer can call your main office, and the receptionist can transfer them to a specialist at a different branch seamlessly. The customer never knows they’ve been transferred to a different city.
Overcoming Common Pain Points in Multi-Site Setup
It’s not always smooth sailing. Here is how to handle the “boring” but critical technical hurdles:
Latency and Jitter
If your voice sounds like a robot or lags, it’s likely a “Quality of Service” (QoS) issue. You must configure your office routers to prioritize “Voice Traffic” over “Data Traffic.” In short, an employee downloading a large PDF shouldn’t ruin an ongoing sales call.
NAT Traversal Issues
Sometimes, one-way audio occurs because the firewall blocks the return path of the voice packets. Using a STUN server or setting up proper Port Forwarding on your gateway usually solves this. For those using specific hardware, checking a IP phone maintenance guide can help identify if the issue lies in the endpoint or the gateway.
Hardware Compatibility
Mixing different brands (e.g., a Matrix PBX at one end and a Cisco gateway at the other) can sometimes cause signaling mismatches. Stick to industry-standard protocols like SIP to ensure interoperability. If you are using specific local brands, consulting Matrix EPABX authorized dealers can ensure your configuration matches the hardware’s capabilities.
Future-Proofing Your Connectivity in 2026
As we move further into 2026, the integration of AI and cloud-native features is becoming standard. Many businesses are now moving toward a hybrid IP EPABX model, which combines the reliability of on-site gateways with the flexibility of the cloud.
When configuring your gateways, always leave room for scalability. If you have 10 users today, configure your dial plan and bandwidth for 50. It’s much cheaper to plan for growth now than to reconfigure your entire network next year.
Frequently Asked Questions (FAQs)
1. Can I use different brands of VoIP gateways for different sites?
Yes, as long as both gateways support the standard SIP (Session Initiation Protocol). However, using the same brand (like Dinstar or Grandstream) often makes the configuration smoother as the terminology and interface will be consistent.
2. What happens to my calls if the internet goes down?
If you have configured “PSTN Failover,” the gateway will automatically detect the internet outage and route outgoing calls through a traditional analog line or a GSM SIM card. This ensures your business stays reachable.
3. Is it difficult to move my existing phone numbers to a multi-site VoIP setup?
Not at all. This process is called “Number Porting.” You can keep your existing landline numbers and route them through your VoIP gateways so they can be answered at any of your connected locations.
4. Do I need a specialized IT team to manage this?
While the initial setup of how to configure VoIP gateways for multi-site connectivity requires technical knowledge, the day-to-day management is quite simple. Most modern gateways offer a user-friendly web interface that your existing IT staff can easily handle.
5. How many locations can I connect using this method?
Technically, there is no limit. You can connect two offices or two hundred. The only constraint is your central PBX’s capacity and the available bandwidth at each site.
Summary Table: Configuration Checklist
| Task | Key Requirement | Purpose |
| IP Addressing | Static IP / DDNS | Ensures the gateways can always find each other. |
| Port Forwarding | UDP 5060 & 10000-20000 | Allows voice data to pass through firewalls. |
| Dial Plan | Unique Extension Ranges | Enables inter-office short-code dialing. |
| QoS Settings | Voice Priority | Prevents audio lag and dropped calls. |
| Security | VPN or TLS/SRTP | Protects business calls from hacking and fraud. |
By following these steps, you transform your business from a collection of isolated offices into a single, powerhouse communication network. If you’re ready to start, checking out professional EPABX solutions in Chennai and Coimbatore can provide the local expertise needed to get your hardware up and running perfectly.
